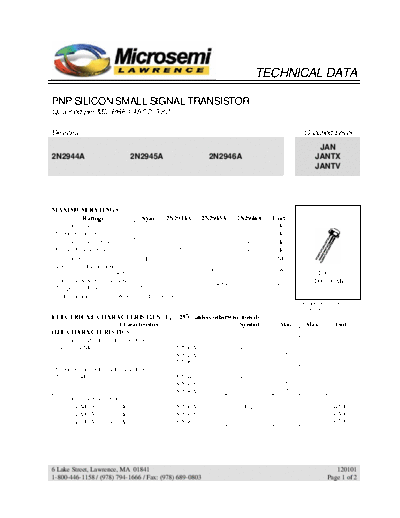

Image preview - the first page of the document
>> Download 2n2944a-45a-46a documenatation <<
Text preview - extract from the document
TECHNICAL DATA
PNP SILICON SMALL SIGNAL TRANSISTOR
Qualified per MIL-PRF-19500/382
Devices Qualified Level
JAN
2N2944A 2N2945A 2N2946A JANTX
JANTV
MAXIMUM RATINGS
Ratings Sym 2N2944A 2N2945A 2N2946A Unit
Collector-Emitter Voltage VCEO 10 20 35 Vdc
Emitter-Collector Voltage VECO 10 20 35 Vdc
Collector-Base Voltage VCBO 15 25 40 Vdc
Emitter-Base Voltage VEBO 15 25 40 Vdc
Collector Current IC 100 mAdc
Total Power Dissipation
PT(1) 400 mW
@ TA = +250C TO-46*
Operating & Storage Junction 0 (TO-206AB)
TJ, Tstg -65 to +200 C
Temperature Range
1) Derate linearly 2.30 mW/ C above TA = +250C
0
*See appendix A for
package outline
ELECTRICAL CHARACTERISTICS (TA = 250C unless otherwise noted)
Characteristics Symbol Min. Max. Unit
OFF CHARACTERISTICS
Collector-Emitter Breakdown Voltage
