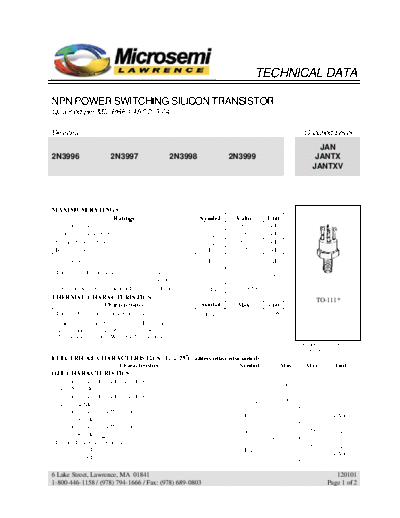

Image preview - the first page of the document
2n3996-99


>> Download 2n3996-99 documenatation <<

Text preview - extract from the document
                                                                                   TECHNICAL DATA

NPN POWER SWITCHING SILICON TRANSISTOR
Qualified per MIL-PRF-19500/374

Devices                                                                                              Qualified Level
                                                                                                           JAN
2N3996                 2N3997                      2N3998              2N3999                             JANTX
                                                                                                         JANTXV




MAXIMUM RATINGS
              Ratings                                       Symbol      Value        Unit
 Collector-Emitter Voltage                                   VCEO          80        Vdc
 Collector-Base Voltage                                      VCBO          100       Vdc
 Emitter-Base Voltage                                        VEBO          8.0       Vdc
 Base Current                                                 IB           0.5       Adc
                                                                           5.0
 Collector Current                                            IC                     Adc
                                                                          10(1)
                                               0   (2)
 Total Power Dissipation         @ TA = +25 C                              2.0
                                                              PT                      W
                                 @ TC = +1000C (3)                         30
                                                                                      0
 Operating & Storage Junction Temperature Range             TJ, Tstg   -65 to +200    C
THERMAL CHARACTERISTICS                                                                                      TO-111*
                    Characteristics                         Symbol       Max.        Unit
                                                                                     0
 Thermal Resistance, Junction-to-Case                        RJC         3.33         C/W
1) This value applies for tp  1.0 ms, duty cycle  50%
2) Derate linearly 11.4 mW/0C for TA > +250C
3) Derate linearly 300 mW/0C for TC > +1000C
                                                                                                   *See appendix A for
                                                                                                   package outline
ELECTRICAL CHARACTERISTICS (TC = 250C unless otherwise noted)
                             Characteristics                              Symbol            Min.      Max.         Unit
OFF CHARACTERISTICS
 Collector-Emitter Breakdown Voltage
                                                                          V(BR)CEO           80                     Vdc
  IC = 50 mAdc
 Collector-Emitter Breakdown Voltage
                                                                          V(BR)CBO          100                     Vdc
  IC = 10
