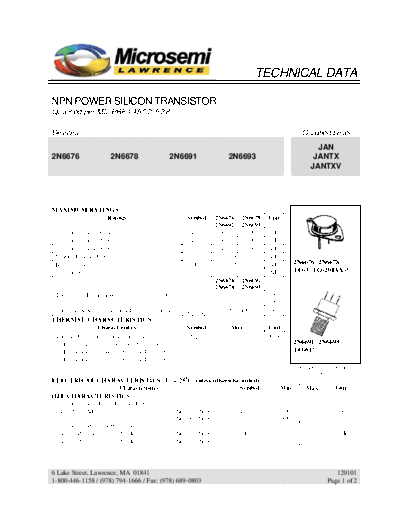

Image preview - the first page of the document
2n6676_2n6678_2n6691_2n6693


>> Download 2n6676_2n6678_2n6691_2n6693 documenatation <<

Text preview - extract from the document
                                                                                    TECHNICAL DATA

NPN POWER SILICON TRANSISTOR
Qualified per MIL-PRF-19500/538

Devices                                                                                                  Qualified Level
                                                                                                               JAN
2N6676                 2N6678                  2N6691                2N6693                                   JANTX
                                                                                                             JANTXV




MAXIMUM RATINGS
                     Ratings                       Symbol       2N6676 2N6678         Unit
                                                                2N6691 2N6693
 Collector-Emitter Voltage                          VCEO         300         400      Vdc
 Collector-Base Voltage                             VCBO         450         650      Vdc
 Collector-Base Voltage                             VCEX         450         650      Vdc
 Emitter-Base Voltage                               VEBO                8.0           Vdc
 Base Current                                        IB                 5.0           Adc             2N6676, 2N6678
 Collector Current                                   IC                 15            Adc             TO-3 (TO-204AA)*
                                                                2N6676 2N6691
                                                                2N6678 2N6693
 Total Power Dissipation         @ TA = 250C                     6.0(2)      3.0(3)       W
                                                      PT
                                 @ TC = 250C(1)                  175         175          W
                                                                                          0
 Operating & Storage Junction Temperature Range    Top; Tstg        -65 to +200            C
THERMAL CHARACTERISTICS
                 Characteristics                   Symbol             Max.            Unit
                                                                                      0
 Thermal Resistance, Junction-to-Case                RJC              1.0             C/W
1) Derate linearly 1.0 W/0C for TC > 250C
                                                                                                      2N6691, 2N6693
2) Derate linearly 34.2 mW/0C for TA > 250C                                                           TO-61*
3) Derate linearly 17.1 mW/0C for TA > 250C
                                                                                                      * See Appendix A for Package
                                                                                                                Outline
ELECTRICAL CHARACTERISTICS (TC = 250C unless otherwise noted)
                             Characteristics                              Symbol               Min.        Max.         Unit
OFF CHARACTERISTICS
 Collector-Emitter Breakdown Voltage
  IC = 200 mAdc                                2N6676, 2N6691             V(BR)CEO             300                      Vdc
                                               2N6678, 2N6693                                  400
 Collector-Emitter Cutoff Current
  VCE = 450 Vdc, VBE = 1.5 Vdc                 2N6676, 2N6691                ICEX                           0.1        mAdc
  VCE = 650 Vdc, VBE = 1.5 Vdc                 2N6678, 2N6693                                               0.1




6 Lake Street, Lawrence, MA 01841                                                                                      120101
1-800-446-1158 / (978) 794-1666 / Fax: (978) 689-0803                                                               Page 1 of 2
                                        2N6676, 2N6678, 2N6691, 2N6693 JAN SERIES

ELECTRICAL CHARACTERISTICS (con't)
                           Characteristics                             Symbol       Min.   Max.   Unit
 Emitter-Base Cutoff Current
                                                                         IEBO                     mAdc
  VEB = 8.0 Vdc                                                                            2.0
 Collector-Base Cutoff Current
  VCB = 450 Vdc                                  2N6676, 2N6691          ICBO              1.0    mAdc
  VCB = 650 Vdc                                  2N6678, 2N6693                            1.0
ON CHARACTERISTICS (4)
 Forward-Current Transfer Ratio
  IC = 1.0 Adc; VCE = 3.0 Vdc                                            hFE        15      40
  IC = 15 Adc; VCE = 3.0 Vdc                                                        8.0     20
 Collector-Emitter Saturation Voltage
                                                                       VCE(sat)            1.0     Vdc
  IC = 15 Adc; IB = 3.0 Adc
 Base-Emitter Saturation Voltage
                                                                       VBE(sat)            1.5     Vdc
  IC = 15 Adc; IB = 3.0 Adc
DYNAMIC CHARACTERISTICS
 Small-Signal Short-Circuit Forward Current Transfer Ratio
                                                                        hfe         3.0     10
  IC = 1.0 Adc; VCE = 10 Vdc, f = 5 MHz
 Output Capacitance
                                                                         Cobo       150    500     pF
  VCB = 10 Vdc; IE = 0, 100 kHz  f  1.0 MHz
SWITCHING CHARACTERISTICS
 Delay Time                                                               t
                                                                           d               0.1
