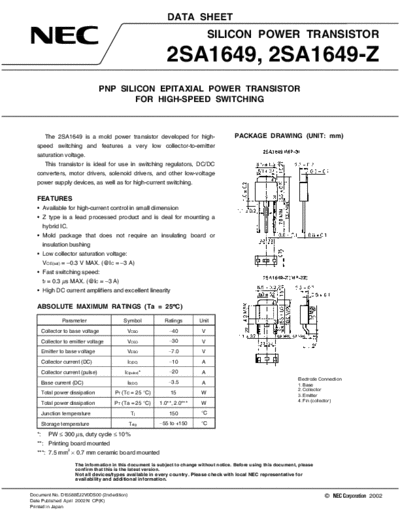

Image preview - the first page of the document



>> Download 2sa1649_2sa1649-z documenatation <<

Text preview - extract from the document

                                                              DATA SHEET
                                                                                  SILICON POWER TRANSISTOR

                                                              2SA1649, 2SA1649-Z
                                   PNP SILICON EPITAXIAL POWER TRANSISTOR
                                           FOR HIGH-SPEED SWITCHING



        The 2SA1649 is a mold power transistor developed for high-                         PACKAGE DRAWING (UNIT: mm)
  speed switching and features a very low collector-to-emitter
  saturation voltage.
        This transistor is ideal for use in switching regulators, DC/DC
  converters, motor drivers, solenoid drivers, and other low-voltage
  power supply devices, as well as for high-current switching.
