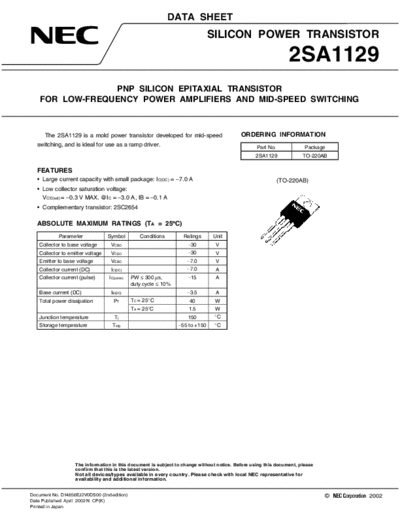

Image preview - the first page of the document



>> Download 2sa1129 documenatation <<

Text preview - extract from the document

                                                              DATA SHEET
                                                                              SILICON POWER TRANSISTOR

                                                                                                                2SA1129
                 PNP SILICON EPITAXIAL TRANSISTOR
    FOR LOW-FREQUENCY POWER AMPLIFIERS AND MID-SPEED SWITCHING



      The 2SA1129 is a mold power transistor developed for mid-speed                       ORDERING INFORMATION
  switching, and is ideal for use as a ramp driver.                                               Part No.             Package
                                                                                                 2SA1129              TO-220AB

  FEATURES
