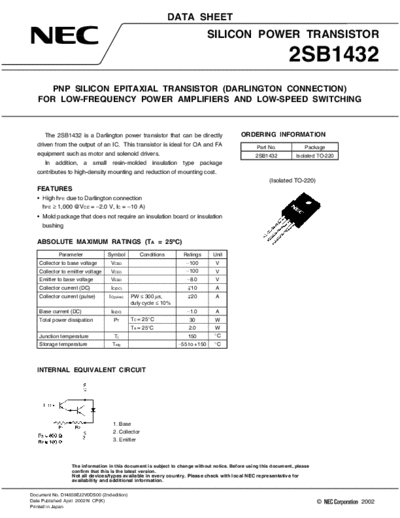

                                                                DATA SHEET
                                                                               SILICON POWER TRANSISTOR

                                                                                                                2SB1432
      PNP SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
   FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING



      The 2SB1432 is a Darlington power transistor that can be directly                    ORDERING INFORMATION
  driven from the output of an IC. This transistor is ideal for OA and FA                         Part No.            Package
  equipment such as motor and solenoid drivers.                                                  2SB1432           Isolated TO-220
      In addition, a small resin-molded insulation type package
  contributes to high-density mounting and reduction of mounting cost.
                                                                                                       (Isolated TO-220)
  FEATURES
