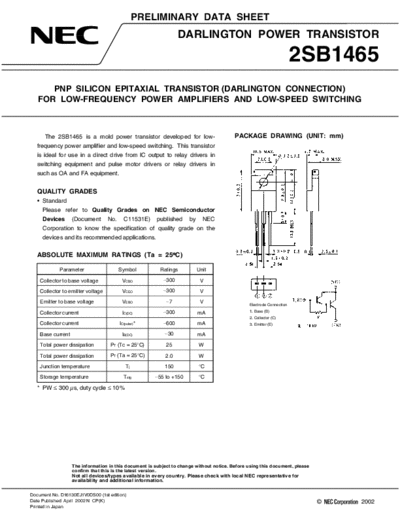

                                                 PRELIMINARY DATA SHEET
                                                                 DARLINGTON POWER TRANSISTOR

                                                                                                                       2SB1465
      PNP SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
   FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING



      The 2SB1465 is a mold power transistor developed for low-                           PACKAGE DRAWING (UNIT: mm)
  frequency power amplifier and low-speed switching. This transistor
  is ideal for use in a direct drive from IC output to relay drivers in
  switching equipment and pulse motor drivers or relay drivers in
  such as OA and FA equipment.


  QUALITY GRADES
