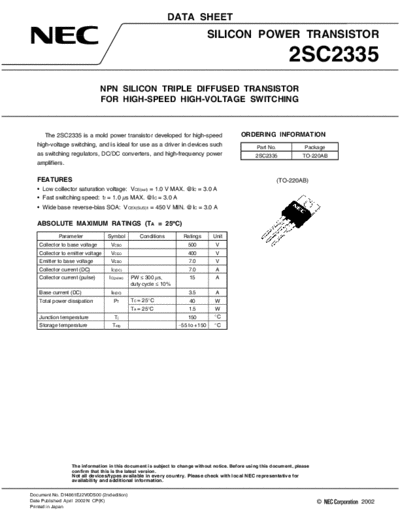

Image preview - the first page of the document



>> Download 2sc2335 documenatation <<

Text preview - extract from the document

                                                              DATA SHEET
                                                                              SILICON POWER TRANSISTOR

                                                                                                                2SC2335
                               NPN SILICON TRIPLE DIFFUSED TRANSISTOR
                               FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING



      The 2SC2335 is a mold power transistor developed for high-speed                      ORDERING INFORMATION
  high-voltage switching, and is ideal for use as a driver in devices such                        Part No.            Package
  as switching regulators, DC/DC converters, and high-frequency power                            2SC2335              TO-220AB
  amplifiers.

  FEATURES                                                                                                   (TO-220AB)
