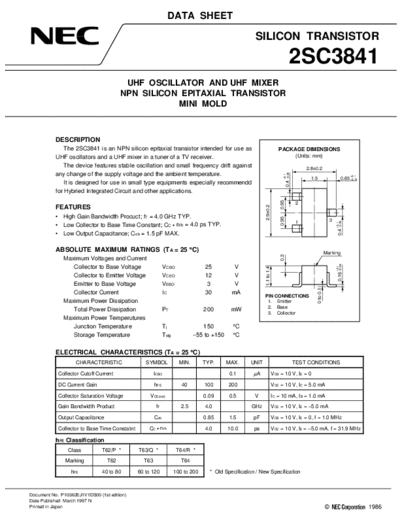

                                                                DATA SHEET
                                                                DATA SHEET

                                                                                                        SILICON TRANSISTOR

                                                                                                                                            2SC3841
                                        UHF OSCILLATOR AND UHF MIXER
                                       NPN SILICON EPITAXIAL TRANSISTOR
                                                  MINI MOLD



           DESCRIPTION
               The 2SC3841 is an NPN silicon epitaxial transistor intended for use as                                        PACKAGE DIMENSIONS
           UHF oscillators and a UHF mixer in a tuner of a TV receiver.                                                           (Units: mm)
               The device features stable oscillation and small frequency drift against                                                              2.8
