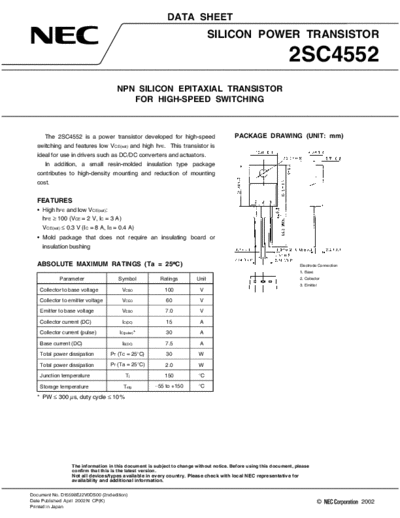

Image preview - the first page of the document



>> Download 2sc4552 documenatation <<

Text preview - extract from the document

                                                           DATA SHEET
                                                                               SILICON POWER TRANSISTOR

                                                                                                                 2SC4552
                                     NPN SILICON EPITAXIAL TRANSISTOR
                                        FOR HIGH-SPEED SWITCHING



      The 2SC4552 is a power transistor developed for high-speed                         PACKAGE DRAWING (UNIT: mm)
  switching and features low VCE(sat) and high hFE. This transistor is
  ideal for use in drivers such as DC/DC converters and actuators.
      In addition, a small resin-molded insulation type package
  contributes to high-density mounting and reduction of mounting
  cost.


  FEATURES
