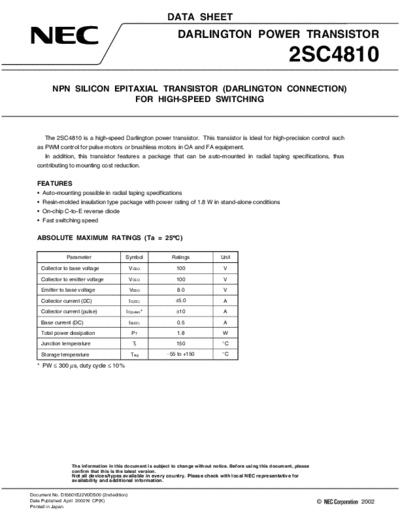

                                                          DATA SHEET
                                                               DARLINGTON POWER TRANSISTOR

                                                                                                                2SC4810
         NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
                         FOR HIGH-SPEED SWITCHING



      The 2SC4810 is a high-speed Darlington power transistor. This transistor is ideal for high-precision control such
  as PWM control for pulse motors or brushless motors in OA and FA equipment.
      In addition, this transistor features a package that can be auto-mounted in radial taping specifications, thus
  contributing to mounting cost reduction.
