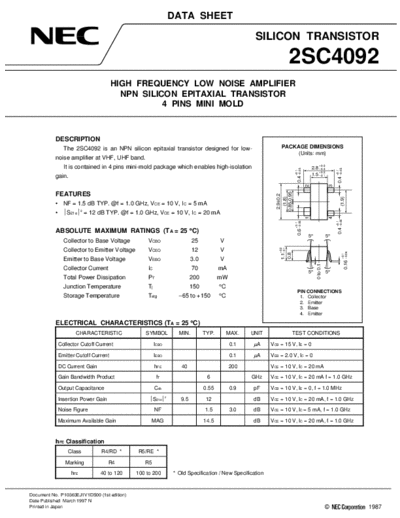

Image preview - the first page of the document



>> Download 2sc4092 documenatation <<

Text preview - extract from the document

                                                             DATA SHEET
                                                             DATA SHEET

                                                                                                SILICON TRANSISTOR

                                                                                                                 2SC4092
                                     HIGH FREQUENCY LOW NOISE AMPLIFIER
                                       NPN SILICON EPITAXIAL TRANSISTOR
                                                4 PINS MINI MOLD



           DESCRIPTION
              The 2SC4092 is an NPN silicon epitaxial transistor designed for low-                           PACKAGE DIMENSIONS
                                                                                                                  (Units: mm)
           noise amplifier at VHF, UHF band.
                                                                                                                                                +0.2
              It is contained in 4 pins mini-mold package which enables high-isolation                                                   2.8 -0.3




                                                                                                                         0.4 -0.05




                                                                                                                                                              0.4 -0.05
                                                                                                                       +0.1




                                                                                                                                                            +0.1
                                                                                                                                             +0.2
           gain.                                                                                                                         1.5 -0.1




                                                                                                                                     2




                                                                                                                                                        3
                                                                                                         0.85 0.95
           FEATURES




                                                                                                          2.9
