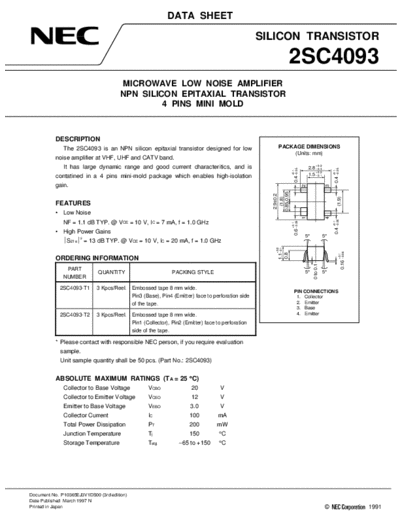

Image preview - the first page of the document



>> Download 2sc4093 documenatation <<

Text preview - extract from the document

                                                             DATA SHEET
                                                             DATA SHEET

                                                                                                    SILICON TRANSISTOR

                                                                                                                   2SC4093
                                        MICROWAVE LOW NOISE AMPLIFIER
                                       NPN SILICON EPITAXIAL TRANSISTOR
                                                4 PINS MINI MOLD



           DESCRIPTION
              The 2SC4093 is an NPN silicon epitaxial transistor designed for low                         PACKAGE DIMENSIONS
                                                                                                               (Units: mm)
           noise amplifier at VHF, UHF and CATV band.
                                                                                                                                            +0.2
              It has large dynamic range and good current characteritics, and is                                                     2.8 -0.3




                                                                                                                     0.4 -0.05




                                                                                                                                                          0.4 -0.05
                                                                                                                   +0.1




                                                                                                                                                        +0.1
                                                                                                                                         +0.2
           contatined in a 4 pins mini-mold package which enables high-isolation                                                     1.5 -0.1

           gain.




                                                                                                                                 2




                                                                                                                                                    3
                                                                                                      0.85 0.95
                                                                                                       2.9
