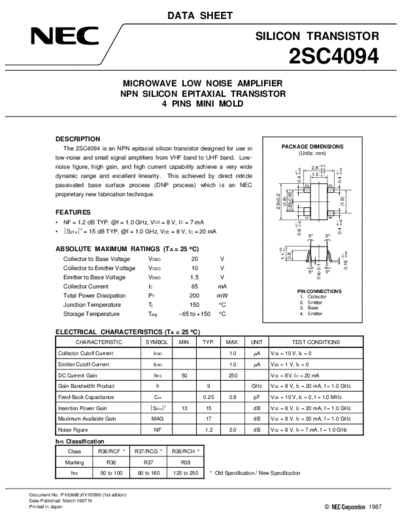

Image preview - the first page of the document



>> Download 2sc4094 documenatation <<

Text preview - extract from the document

                                                                 DATA SHEET
                                                                 DATA SHEET

                                                                                                       SILICON TRANSISTOR

                                                                                                                        2SC4094
                                        MICROWAVE LOW NOISE AMPLIFIER
                                       NPN SILICON EPITAXIAL TRANSISTOR
                                                4 PINS MINI MOLD



           DESCRIPTION
              The 2SC4094 is an NPN epitaxial silicon transistor designed for use in                                PACKAGE DIMENSIONS
                                                                                                                         (Units: mm)
           low-noise and small signal amplifiers from VHF band to UHF band. Low-
                                                                                                                                                       +0.2
           noise figure, high gain, and high current capability achieve a very wide                                                             2.8 -0.3




                                                                                                                                0.4 -0.05




                                                                                                                                                                     0.4 -0.05
                                                                                                                              +0.1




                                                                                                                                                                   +0.1
                                                                                                                                                    +0.2
           dynamic range and excellent linearity.                This achieved by direct nitride                                                1.5 -0.1

           passivated base surface process (DNP process) which is an NEC




                                                                                                                                            2




                                                                                                                                                               3
                                                                                                                0.85 0.95
           proprietary new fabrication technique.




                                                                                                                 2.9
