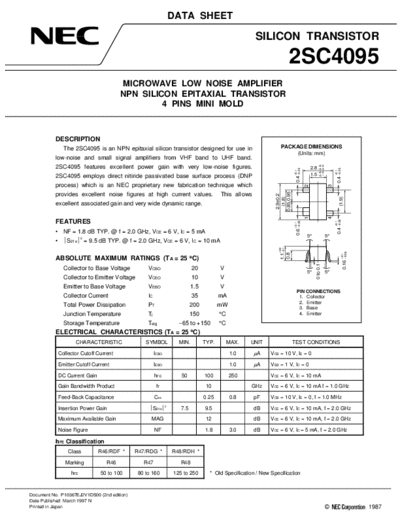

Image preview - the first page of the document



>> Download 2sc4095 documenatation <<

Text preview - extract from the document

                                                                 DATA SHEET
                                                                 DATA SHEET

                                                                                                     SILICON TRANSISTOR

                                                                                                                      2SC4095
                                        MICROWAVE LOW NOISE AMPLIFIER
                                       NPN SILICON EPITAXIAL TRANSISTOR
                                                4 PINS MINI MOLD



           DESCRIPTION
              The 2SC4095 is an NPN epitaxial silicon transistor designed for use in                              PACKAGE DIMENSIONS
                                                                                                                       (Units: mm)
           low-noise and small signal amplifiers from VHF band to UHF band.
                                                                                                                                                    +0.2
           2SC4095 features excellent power gain with very low-noise figures.                                                                2.8 -0.3




                                                                                                                             0.4 -0.05




                                                                                                                                                                  0.4 -0.05
                                                                                                                           +0.1




                                                                                                                                                                +0.1
                                                                                                                                                 +0.2
           2SC4095 employs direct nitiride passivated base surface process (DNP                                                              1.5 -0.1

           process) which is an NEC proprietary new fabrication technique which




                                                                                                                                         2




                                                                                                                                                            3
                                                                                                              0.85 0.95
           provides excellent noise figures at high current values.                    This allows




                                                                                                               2.9
