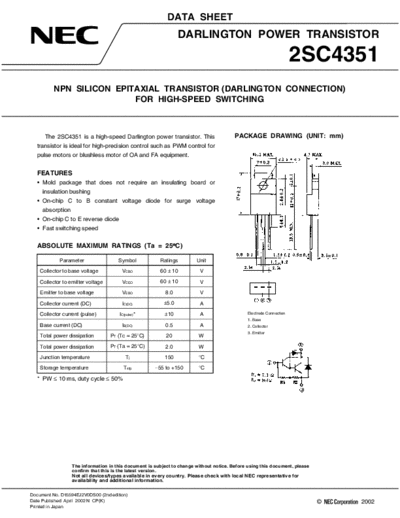

                                                           DATA SHEET
                                                                 DARLINGTON POWER TRANSISTOR

                                                                                                                      2SC4351
          NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
                          FOR HIGH-SPEED SWITCHING



      The 2SC4351 is a high-speed Darlington power transistor. This                      PACKAGE DRAWING (UNIT: mm)
  transistor is ideal for high-precision control such as PWM control for
  pulse motors or blushless motor of OA and FA equipment.


  FEATURES
