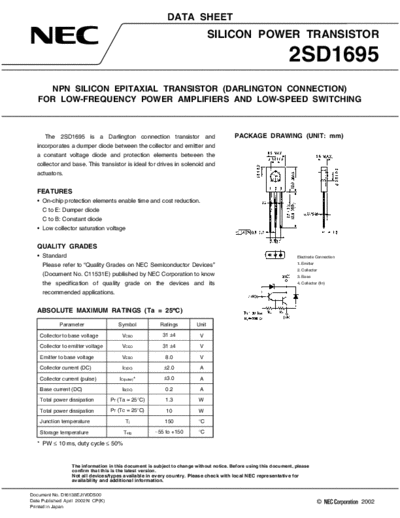

Image preview - the first page of the document



>> Download 2sd1695 documenatation <<

Text preview - extract from the document

                                                           DATA SHEET
                                                                               SILICON POWER TRANSISTOR

                                                                                                                 2SD1695
     NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
   FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING



      The 2SD1695 is a Darlington connection transistor and                              PACKAGE DRAWING (UNIT: mm)
   incorporates a dumper diode between the collector and emitter and
   a constant voltage diode and protection elements between the
   collector and base. This transistor is ideal for drives in solenoid and
   actuators.


   FEATURES
