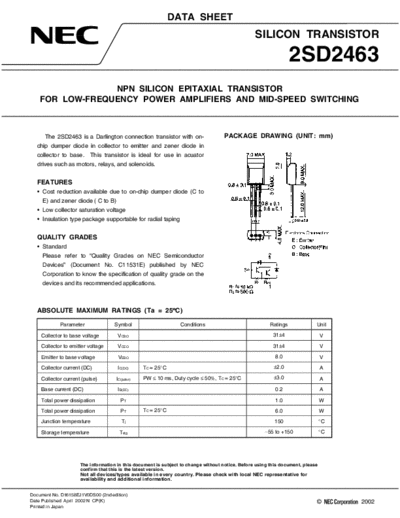

Image preview - the first page of the document



>> Download 2sd2463 documenatation <<

Text preview - extract from the document

                                                             DATA SHEET
                                                                                                 SILICON TRANSISTOR

                                                                                                                  2SD2463
                 NPN SILICON EPITAXIAL TRANSISTOR
    FOR LOW-FREQUENCY POWER AMPLIFIERS AND MID-SPEED SWITCHING



      The 2SD2463 is a Darlington connection transistor with on-                    PACKAGE DRAWING (UNIT: mm)
  chip dumper diode in collector to emitter and zener diode in
  collector to base. This transistor is ideal for use in acuator
  drives such as motors, relays, and solenoids.


  FEATURES
