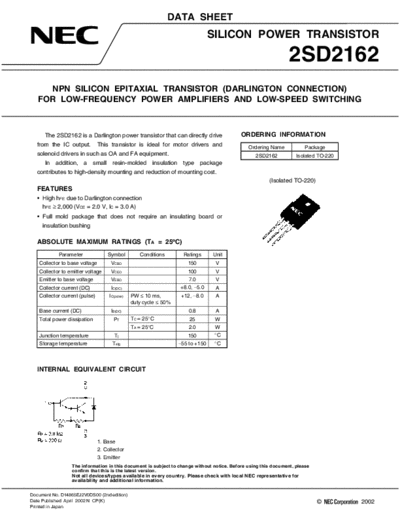

Image preview - the first page of the document



>> Download 2sd2162 documenatation <<

Text preview - extract from the document

                                                                DATA SHEET
                                                                                SILICON POWER TRANSISTOR

                                                                                                                 2SD2162
     NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
   FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING



      The 2SD2162 is a Darlington power transistor that can directly drive                  ORDERING INFORMATION
  from the IC output.          This transistor is ideal for motor drivers and                  Ordering Name           Package
  solenoid drivers in such as OA and FA equipment.                                                2SD2162           Isolated TO-220
      In addition, a small resin-molded insulation type package
  contributes to high-density mounting and reduction of mounting cost.
                                                                                                        (Isolated TO-220)
  FEATURES
