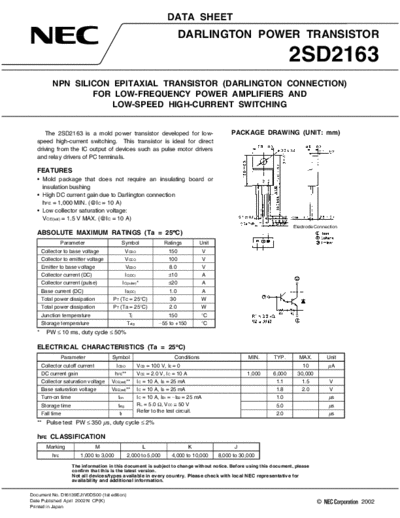

Image preview - the first page of the document



>> Download 2sd2163 documenatation <<

Text preview - extract from the document

                                                                      DATA SHEET
                                                                             DARLINGTON POWER TRANSISTOR

                                                                                                                         2SD2163
           NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
                   FOR LOW-FREQUENCY POWER AMPLIFIERS AND
                       LOW-SPEED HIGH-CURRENT SWITCHING


     The 2SD2163 is a mold power transistor developed for low-                                    PACKAGE DRAWING (UNIT: mm)
  speed high-current switching. This transistor is ideal for direct
  driving from the IC output of devices such as pulse motor drivers
  and relay drivers of PC terminals.
