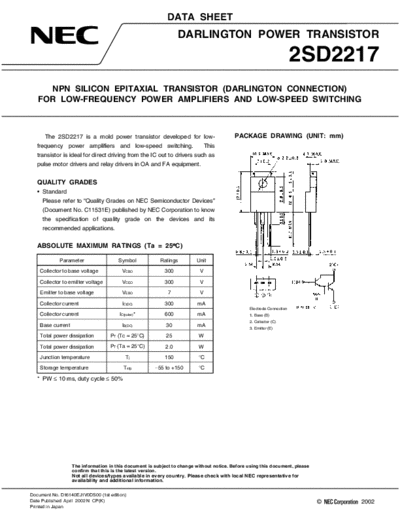

Image preview - the first page of the document



>> Download 2sd2217 documenatation <<

Text preview - extract from the document

                                                            DATA SHEET
                                                                 DARLINGTON POWER TRANSISTOR

                                                                                                                       2SD2217
     NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
   FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING



      The 2SD2217 is a mold power transistor developed for low-                           PACKAGE DRAWING (UNIT: mm)
  frequency power amplifiers and low-speed switching.                         This
  transistor is ideal for direct driving from the IC out to drivers such as
  pulse motor drivers and relay drivers in OA and FA equipment.


  QUALITY GRADES
