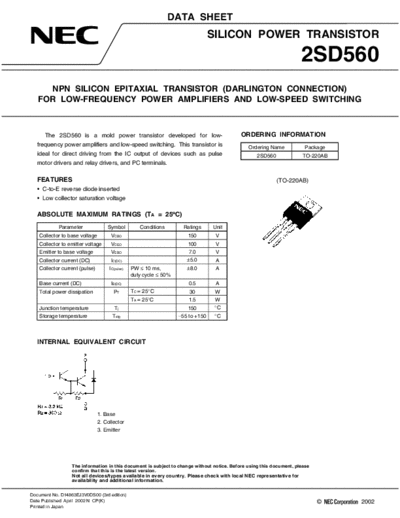

Image preview - the first page of the document



>> Download 2sd560 documenatation <<

Text preview - extract from the document

                                                                DATA SHEET
                                                                                SILICON POWER TRANSISTOR

                                                                                                                      2SD560
     NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
   FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING



      The 2SD560 is a mold power transistor developed for low-                              ORDERING INFORMATION
  frequency power amplifiers and low-speed switching. This transistor is                       Ordering Name           Package
  ideal for direct driving from the IC output of devices such as pulse                             2SD560              TO-220AB
  motor drivers and relay drivers, and PC terminals.

  FEATURES                                                                                                  (TO-220AB)
