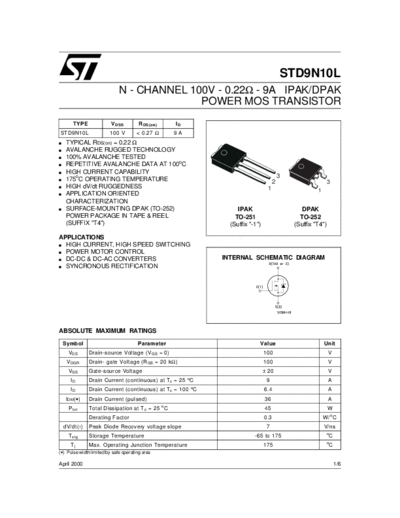

Image preview - the first page of the document



>> Download std9n10l documenatation <<

Text preview - extract from the document

                                                                                              STD9N10L
                              N - CHANNEL 100V - 0.22 - 9A IPAK/DPAK
                                            POWER MOS TRANSISTOR
         TYPE             V DSS         R DS(on)     ID
STD9N10L                 100 V        < 0.27         9A
s    TYPICAL RDS(on) = 0.22
s    AVALANCHE RUGGED TECHNOLOGY
s    100% AVALANCHE TESTED
s    REPETITIVE AVALANCHE DATA AT 100oC
s    HIGH CURRENT CAPABILITY
                                                                                              3
s    175oC OPERATING TEMPERATURE                                                          2                       3
s    HIGH dV/dt RUGGEDNESS                                                           1                     1
s    APPLICATION ORIENTED
     CHARACTERIZATION
s    SURFACE-MOUNTING DPAK (TO-252)                                    IPAK                         DPAK
     POWER PACKAGE IN TAPE & REEL                                     TO-251                        TO-252
     (SUFFIX "T4")                                                  (Suffix "-1")                 (Suffix "T4")

APPLICATIONS
s HIGH CURRENT, HIGH SPEED SWITCHING
s POWER MOTOR CONTROL

s DC-DC & DC-AC CONVERTERS
                                                                  INTERNAL SCHEMATIC DIAGRAM
s SYNCRONOUS RECTIFICATION




ABSOLUTE MAXIMUM RATINGS
    Symbol                             Parameter                                Value                          Unit
      VDS        Drain-source Voltage (V GS = 0)                                    100                           V
     V DGR       Drain- gate Voltage (R GS = 20 k)                                  100                           V
      V GS       Gate-source Voltage
