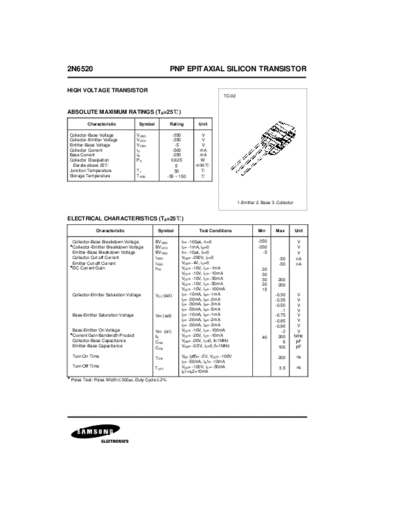

Image preview - the first page of the document
2n6520


>> Download 2n6520 documenatation <<

Text preview - extract from the document
2N6520                                                 PNP EPITAXIAL SILICON TRANSISTOR

HIGH VOLTAGE TRANSISTOR
                                                                                   TO-92


ABSOLUTE MAXIMUM RATINGS (TA=25                           )
          Characteristic             Symbol            Rating          Unit

 Collector-Base Voltage             VCBO                -350          V
 Collector-Emitter Voltage          VCEO                -350          V
 Emitter-Base Voltage               VEBO                  -5          V
 Collector Current                  IC                  -500          mA
 Base Current                       IB                  -250          mA

                   &                                                        &
 Collector Dissipation              PC                  0.625         W
   Derate above 25                                                   mW/
                                                                        &
                                                          5
 Junction Temperature               TJ
                                                                        &
                                                          50
 Storage Temperature                T STG             -55 ~ 150




                                                                                           1.Emitter 2. Base 3. Collector


ELECTRICAL CHARACTERISTICS (TA=25                         )
              Characteristic                   Symbol                  Test Conditions                Min      Max          Unit

  Collector-Base Breakdown Voltage
 %Collector-Emitter Breakdown Voltage
                                              BVCBO                  }
                                                              IC= -100 , IE=0                         -350                  V

                                                                    }
                                              BVCEO           IC= -1mA, IB=0                          -350                  V
  Emitter-Base Breakdown Voltage              BVEBO           IE= -10 , IC=0                            -5                  V
  Collector Cut-off Current                   ICBO            VCB= -250V, IE=0                                   -50        nA
  Emitter Cut-off Current                                     VEB= -4V, IC=0
 %DC Current Gain                             IEBO
                                              hFE             VCE= -10V, IC= -1mA
                                                                                                                 -50        nA
                                                                                                        20
                                                              VCE= -10V, IC= -10mA                      30
                                                              VCE= -10V, IC= -30mA                      30      200
                                                              VCE= -10V, IC= -50mA                      20      200
                                                              VCE= -10V, IC= -100mA                     15
  Collector-Emitter Saturation Voltage        VCE (sat)       IC= -10mA, IB= -1mA                              -0.30         V
                                                              IC= -20mA, IB= -2mA                              -0.35         V
                                                              IC= -30mA, IB= -3mA                              -0.50         V
                                                              IC= -50mA, IB= -5mA                                 -1         V
  Base-Emitter Saturation Voltage             VBE (sat)       IC= -10mA, IB= -1mA                              -0.75         V
                                                              IC= -20mA, IB= -2mA                              -0.85         V
                                                              IC= -30mA, IB= -3mA                              -0.90         V
  Base-Emitter On Voltage                                     VCE= -10V, IC= -100mA
 %Current Gain Bandwidth Product              VBE (on)
                                                              VCE= -20V, IC= -10mA
                                                                                                                  -2         V
                                                                                                                            MHz
                                              fT                                                        40      200
  Collector-Base Capacitance                  CCB             VCB= -20V, IE=0, f=1MHz                              6         pF
  Emitter-Base Capacitance                    CEB             VEB= -0.5V, IC=0, f=1MHz                          100          pF

  Turn On Time                                T ON            VBE (off)= -2V, VCC= -100V                        200         ns
                                                              IC= -50mA, IB1= -10mA
  Turn Off Time                               T OFF           VCC= -100V, IC= -50mA                              3.5        ns
                                                              IB1=IB2=10mA
% Pulse Test: Pulse Width300s, Duty Cycle2%
2N6520   PNP EPITAXIAL SILICON TRANSISTOR
2N6520   PNP EPITAXIAL SILICON TRANSISTOR
