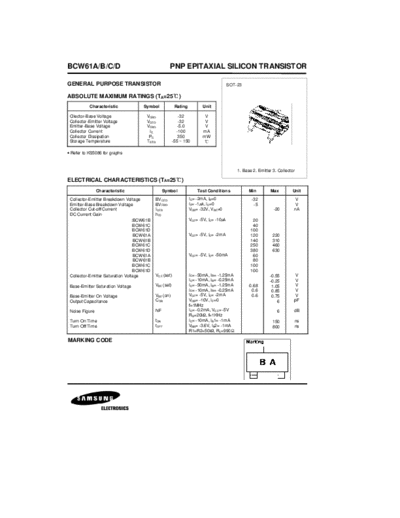

Image preview - the first page of the document



>> Download bcw61a_b_c_d documenatation <<

Text preview - extract from the document

BCW61A/B/C/D                                        PNP EPITAXIAL SILICON TRANSISTOR

GENERAL PURPOSE TRANSISTOR                                                             SOT-23

ABSOLUTE MAXIMUM RATINGS (TA=25                         )
           Characteristic            Symbol              Rating          Unit

 Cllector-Base Voltage                 VCBO                -32            V
 Collector-Emitter Voltage             VCEO                -32            V
 Emitter-Base Voltage                  VEBO                -5.0           V
 Collector Current                       IC               -100           mA


 Collector Dissipation                  PC                 350           mW
 Storage Temperature                   T STG            -55 ~ 150
