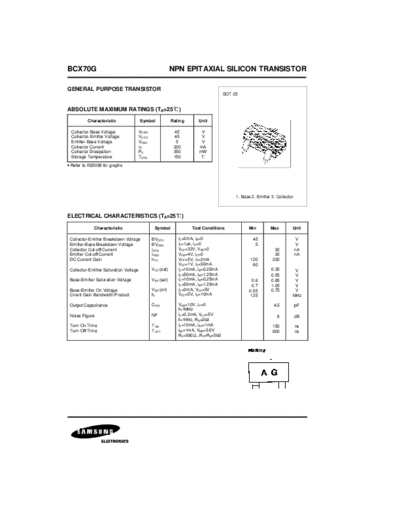

Image preview - the first page of the document



>> Download bcx70g documenatation <<

Text preview - extract from the document

BCX70G                                                      NPN EPITAXIAL SILICON TRANSISTOR

GENERAL PURPOSE TRANSISTOR
                                                                                       SOT-23


ABSOLUTE MAXIMUM RATINGS (TA=25                              )
          Characteristic                Symbol              Rating          Unit

  Collector-Base Voltage                VCBO                 45              V
  Collector-Emitter Voltage             VCEO                 45              V
  Emitter-Base Voltage                  VEBO                  5              V
  Collector Current                     IC                   200            mA


  Collector Dissipation                 PC                   350            mW
  Storage Temperature                   T STG                150
