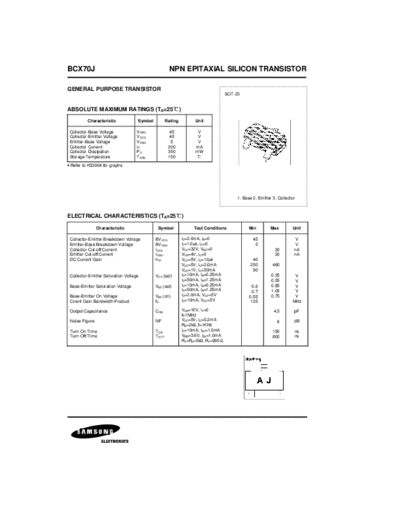

Image preview - the first page of the document



>> Download bcx70j documenatation <<

Text preview - extract from the document

BCX70J                                                 NPN EPITAXIAL SILICON TRANSISTOR

GENERAL PURPOSE TRANSISTOR
                                                                                    SOT-23


ABSOLUTE MAXIMUM RATINGS (TA=25                          )
          Characteristic            Symbol           Rating         Unit

 Collector-Base Voltage             VCBO              45             V
 Collector-Emitter Voltage          VCEO              45             V
 Emitter-Base Voltage               VEBO               5             V
 Collector Current                  IC                200           mA


 Collector Dissipation              PC                350           mW
 Storage Temperature                T STG             150
