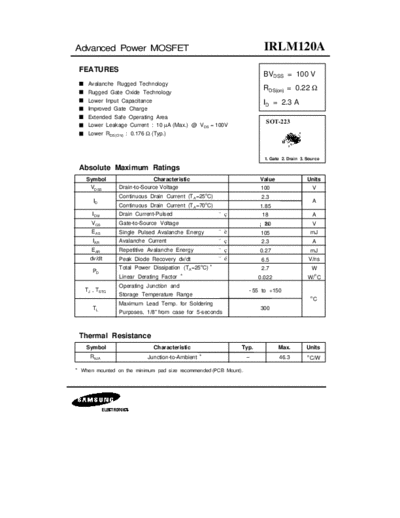

Image preview - the first page of the document
irlm120a


>> Download irlm120a documenatation <<

Text preview - extract from the document
Advanced Power MOSFET                                                    IRLM120A
 FEATURES
                                                                        BVDSS = 100 V
    Avalanche Rugged Technology
    Rugged Gate Oxide Technology
                                                                        RDS(on) = 0.22
    Lower Input Capacitance                                             ID = 2.3 A
    Improved Gate Charge
    Extended Safe Operating Area
                                                                         SOT-223
    Lower Leakage Current : 10
