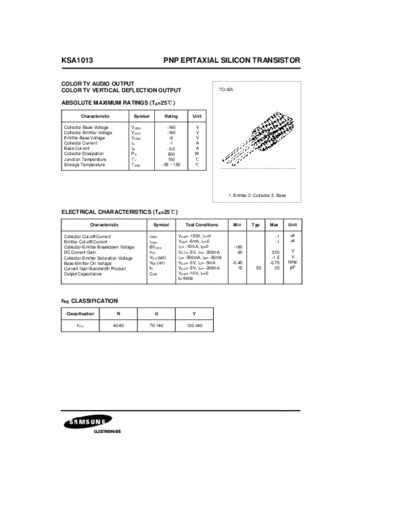

Image preview - the first page of the document



>> Download ksa1013 documenatation <<

Text preview - extract from the document

KSA1013                                                PNP EPITAXIAL SILICON TRANSISTOR


COLOR TV AUDIO OUTPUT
COLOR TV VERTICAL DEFLECTION OUTPUT                                                  TO-92L


ABSOLUTE MAXIMUM RATINGS (TA=25                           )
        Characteristic               Symbol            Rating         Unit

Collector-Base Voltage              VCBO              -160             V
Collector-Emitter Voltage           VCEO              -160             V
Emitter-Base Voltage                VEBO                -6             V
Collector Current                   IC                  -1             A
Base Current                        IB                 -0.5            A
Collector Dissipation               PC                                 W

                                                       900
Junction Temperature                TJ                 150
Storage Temperature                 T STG           -55 ~ 150


                                                                                         1. Emitter 2. Collector 3. Base


ELECTRICAL CHARACTERISTICS (TA=25                         )
             Characteristic                     Symbol             Test Conditions            Min    Typ       Max         Unit

                                                                                                                           }
                                                                                                                           }
Collector Cut-off Current                     ICBO              VCB= -150V, IE=0                                  -1
Emitter Cut-off Current                       IEBO              VEB= -6mA, IC=0                                   -1
Collector-Emitter Breakdown Voltage           BVCEO             IC= -10mA, IB=0               -160
DC Current Gain                               hFE               VCE= -5V, IC= -200mA            60              320         V
Collector-Emitter Saturation Voltage          VCE (sat)         IC= -500mA, IB= -50mA                           -1.5        V
Base-Emitter On Voltage                       VBE (on)          VCE= -5V, IC= -5mA         -0.45               -0.75       MHz
Current Gain Bandwidth Product                fT                VCE= -5V, IC= -200mA          15       50         35        pF
Output Capacitance                            COB               VCB= -10V, IE=0
                                                                f=1MHz




hFE CLASSIFICATION

 Classification              R                  O                     Y

      hFE                   40-80             70-140               120-240
KSA1013   PNP EPITAXIAL SILICON TRANSISTOR
KSA1013   PNP EPITAXIAL SILICON TRANSISTOR
