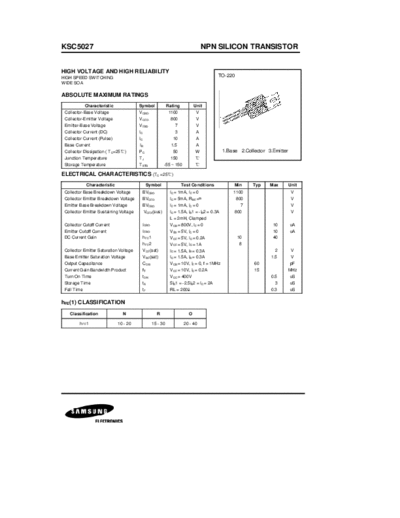

Image preview - the first page of the document



>> Download ksc5027 documenatation <<

Text preview - extract from the document

KSC5027                                                                            NPN SILICON TRANSISTOR


HIGH VOLTAGE AND HIGH RELIABILITY
HIGH SPEED SWITCHING                                                                      TO-220
WIDE SOA

ABSOLUTE MAXIMUM RATINGS
             Characteristic             Symbol                Rating          Unit
 Collector-Base Voltage                 VCBO                  1100             V
 Collector-Emitter Voltage              VCEO                   800             V
 Emitter-Base Voltage                   VEBO                      7            V
 Collector Current (DC)                 IC                        3            A
 Collector Current (Pulse)              IC                      10             A
 Base Current                           IB                      1.5            A
 Collector Dissipation ( T C=25
