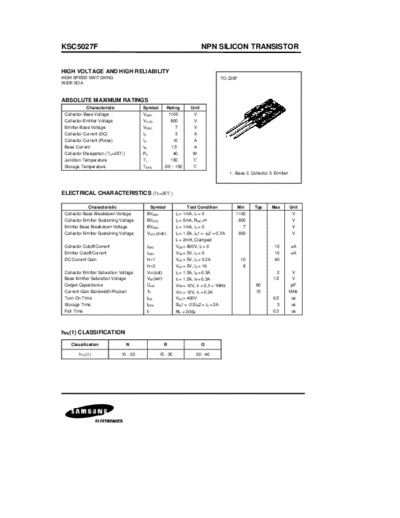

Image preview - the first page of the document



>> Download ksc5027f documenatation <<

Text preview - extract from the document

KSC5027F                                                                          NPN SILICON TRANSISTOR


HIGH VOLTAGE AND HIGH RELIABILITY
HIGH SPEED SWITCHING                                                                          TO-220F
WIDE SOA



ABSOLUTE MAXIMUM RATINGS
             Characteristic                Symbol             Rating       Unit
 Collector-Base Voltage                    VCBO                1100           V
 Collector-Emitter Voltage                 V CEO               800            V
 Emitter-Base Voltage                      VEBO                   7           V
 Collector Current (DC)                    IC                     3           A
 Collector Current (Pulse)                 IC                     10          A
 Base Current                              IB                   1.5           A
 Collector Dissipation (T C=25
