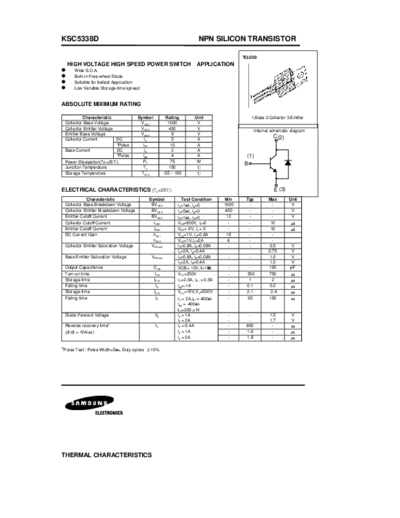

Image preview - the first page of the document
ksc5338d


>> Download ksc5338d documenatation <<

Text preview - extract from the document
KSC5338D                                                                   NPN SILICON TRANSISTOR

                                                                                              TO-220
    HIGH VOLTAGE HIGH SPEED POWER SWITCH APPLICATION
z     Wide S.O.A.
z     Built-in Free-wheel Diode
z     Suitable for ballast App;ication
z     Low Variable Storage-time spread


ABSOLUTE MIXIMUM RATING

          Characteristic                Symbol            Rating         Unit                        1.Base 2.Collector 3.Emitter
 Collector Base Voltage                  VCBO              1000           V
 Collector Emitter Voltage               VCEO               450           V
                                                                                                      Internal schematic diagram
 Emitter Base Voltage                    VEBO                9            V
                                                                                                                C (2)
 Collector Current         DC               IC               5            A
                           *Pulse          ICP              10            A
 Base Current              DC               IB               2            A
                           *Pulse          IBP               4            A                    (1)
 Power Dissipation(Tc=25 )&                PC               75            W
 Junction Temperature                      TJ               150           &                   B
 Storage Temperature                      T STG          -55 ~ 150        &
ELECTRICAL CHARACTERISTICS (T C=25&)                                                                             E (3)
            Characteristic                   Symbol                Test Condition      Min     Typ            Max        Unit
 Collector Base Breakdown Voltage             BVCBO                  ~
                                                                IC=1 , IE=0            1000     -               -         V
 Collector Emitter Breakdown Voltage          BVCEO                  ~
                                                                IC=5 , IB=0            450      -               -         V
 Emitter Cutoff Current                       BVEBO                  ~
                                                                IE=1 , IC=0             12      -               -         V
 Collextor Cutoff Current                      ICBO             VCB=800V, IE=0           -      -              10         }
 Emitter Cutoff Current                        IEBO             VEB = 9V, IC = 0         -      -              10         }
 DC Current Gain                               hFE1             VCE=1V, IC=0.8A         15      -               -
                                               hFE2             VCE=1V,IC=2A            6       -               -
 Collector Emitter Saturation Voltage         VCE(sat)          IC=0.8A, IB=0.08A        -      -              0.5       V
                                                                IC=2A, IB=0.4A                                0.75       V
 Base Emitter Saturation Voltage              VBE(sat)          IC=0.8A, IB=0.08A       -        -             1.0       V
                                                                IC=2A, IB=0.4A                                 1.0       V
 Output Capacitance                               COB           VCB = 10V, f=1          -        -            100        pF
 Turn-on time                                      tON          VCC=250V                -       500           750         r
 Storage-time                                     tSTG          IC =2.5A, IB1 = 0.5A    -        1              2         s
 Falling time                                       tF          IB2=-1A                 -       0.1            0.2        s
 Storage-time                                     tSTG          VCC=15V,VZ=300V         -       2.1            2.4        s
 Falling time                                       tF          IC = 2A,IB1 = 400~      -       95            150         r
                                                                IB2 = -400~
                                                                LC=200 H
