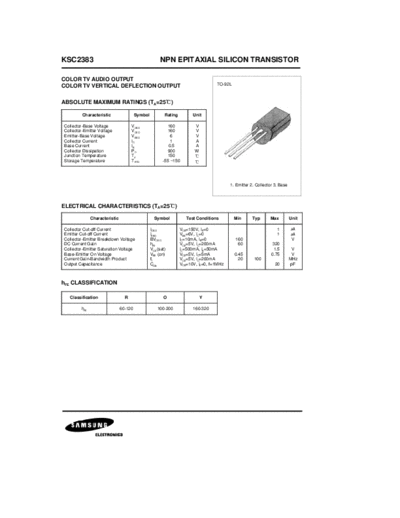

Image preview - the first page of the document



>> Download ksc2383 documenatation <<

Text preview - extract from the document

KSC2383                                               NPN EPITAXIAL SILICON TRANSISTOR

COLOR TV AUDIO OUTPUT
COLOR TV VERTICAL DEFLECTION OUTPUT                                                TO-92L



ABSOLUTE MAXIMUM RATINGS (TA=25 )
         Characteristic                 Symbol           Rating         Unit

Collector-Base Voltage               VCBO                 160            V
Collector-Emitter Voltage            VCEO                 160            V
Emitter-Base Voltage                 VEBO                   6            V
Collector Current                    IC                     1            A
Base Current                         IB                    0.5           A
Collector Dissipation                PC                   900            W
Junction Temperature                 TJ                   150
Storage Temperature                  T STG              -55 ~150

                                                                                          1. Emitter 2. Collector 3. Base



ELECTRICAL CHARACTERISTICS (TA=25 )
              Characteristic                       Symbol            Test Conditions        Min      Typ       Max          Unit

                                                                                                                            }
                                                                                                                            }
Collector Cut-off Current                        ICBO             VCB=150V, IE=0                                   1
Emitter Cut-off Current                          IEBO             VEB=6V, IC=0                                     1
Collector-Emitter Breakdown Voltage              BVCEO            IC=10mA, IB=0             160                              V
DC Current Gain                                  hFE              VCE=5V, IC=200mA           60                 320
Collector-Emitter Saturation Voltage             VCE (sat)        IC=500mA, IB=50mA                              1.5         V
Base-Emitter On Voltage                          VBE (on)         VCE=5V, IC=5mA            0.45                0.75         V
Current Gain-Bandwidth Product                   fT               VCE=5V, IC=200mA            20      100                   MHz
Output Capacitance                               COB              VCB=10V, IE=0, f=1MHz                           20         pF



hFE CLASSIFICATION

   Classification                R                      O                    Y

        hFE                    60-120                100-200            160-320
KSC2383   NPN EPITAXIAL SILICON TRANSISTOR
KSC2383   NPN EPITAXIAL SILICON TRANSISTOR
