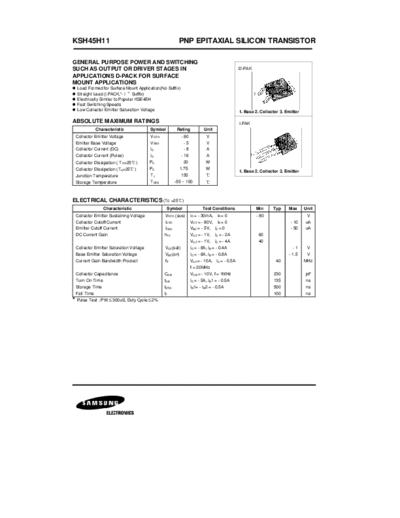

Image preview - the first page of the document
ksh45h11


>> Download ksh45h11 documenatation <<

Text preview - extract from the document
KSH45H11                                                 PNP EPITAXIAL SILICON TRANSISTOR

GENERAL PURPOSE POWER AND SWITCHING
SUCH AS OUTPUT OR DRIVER STAGES IN                                                              D-PAK
APPLICATIONS D-PACK FOR SURFACE
MOUNT APPLICATIONS
z Load Formed for Surface Mount Application(No Suffix)
z Straight Lead (I.PACK,"- I
 Suffix)                                                                       1
z Electrically Similar to Popular KSE45H
z Fast Switching Speeds
z Low Collector Emitter Saturation Voltage                                                      1. Base 2. Collector 3. Emitter

ABSOLUTE MAXIMUM RATINGS                                                                        I-PAK
             Characteristic             Symbol          Rating            Unit
 Collector Emitter Voltage              VCEO               - 80            V
 Emitter Base Voltage                   VEBO                -5             V
 Collector Current (DC)                 IC                  -8             A
 Collector Current (Pulse)              IC                 - 16            A                            1
                             &)
 Collector Dissipation ( T C=25         PC                  20             W
 Collector Dissipation (T =25&)         PC                1.75             W
                                                                           &
                          A
                                                                                                1. Base 2. Collector 3. Emitter
 Junction Temperature                   TJ                 150
 Storage Temperature                    T STG          -55 ~ 150           &

ELECTRICAL CHARACTERISTICS (Tc =25&)
                Characteristic                   Symbol                  Test Conditions                    Min      Typ   Max     Unit
 Collector Emitter Sustaining Voltage           VCEO (sus)        IC = - 30mA,    IB = 0                    - 80                    V
 Collector Cutoff Current                       ICEO              VCE = - 80V,    IB = 0                                   - 10    uA
 Emitter Cutoff Current                         IEBO              VBE = - 5V,    IC = 0                                    - 50    uA
 DC Current Gain                                hFE               VCE = - 1V,    IC = - 2A                      60
                                                                  VCE = - 1V,    IC = - 4A                      40
 Collector Emitter Saturation Voltage           VCE(sat)          IC = - 8A, IB = - 0.4A                                     -1     V
 Base Emitter Saturation Voltage                VBE(on)           IC = - 8A, IB = - 0.8A                                   - 1.5    V
 Current Gain Bandwidth Product                 fT                VCE= - 10A,     IC = - 0.5A                        40            MHz
                                                                  f = 20MHz
 Collector Capacitance                          COB               VCB = - 10V, f = 1MHz                              230           pF
 Turn On Time                                   tON               IC = - 5A, IB1 = - 0.5A                            135           ns
 Storage Time                                   tSTG              IB1= - IB2 = - 0.5A                                500           ns
 Fall Time                                      tF                                                                   100           ns
% Pulse Test : PW 300uS, Duty Cycle2%
KSH45H11   PNP EPITAXIAL SILICON TRANSISTOR
