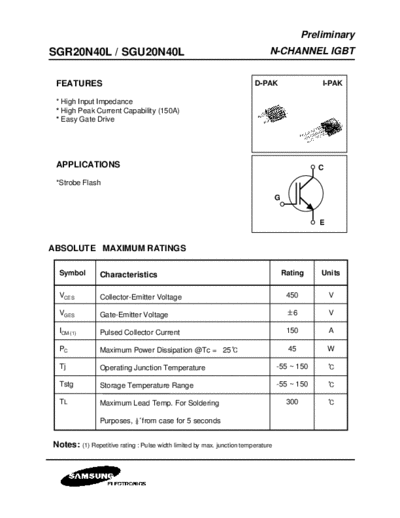

Image preview - the first page of the document



>> Download sgr20n40l documenatation <<

Text preview - extract from the document

                                                                                             Preliminary
SGR20N40L / SGU20N40L                                                         N-CHANNEL IGBT


 FEATURES                                                               D-PAK                    I-PAK

 * High Input Impedance
 * High Peak Current Capability (150A)
 * Easy Gate Drive




 APPLICATIONS                                                                                   C

 *Strobe Flash

                                                                                  G


                                                                                                E


ABSOLUTE MAXIMUM RATINGS

  Symbol        Characteristics                                                       Rating     Units

  VCES          Collector-Emitter Voltage                                              450          V

  VGES          Gate-Emitter Voltage
