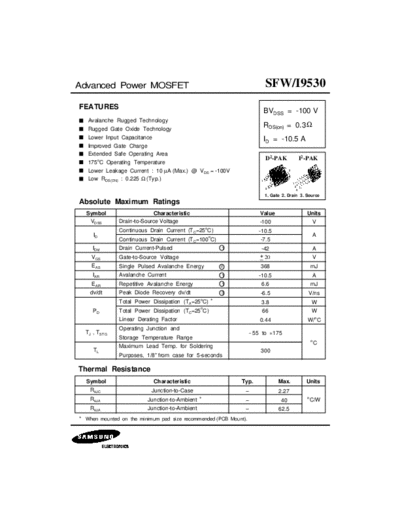

Image preview - the first page of the document



>> Download sfi9530 documenatation <<

Text preview - extract from the document

Advanced Power MOSFET                                                         SFW/I9530
FEATURES
                                                                              BVDSS = -100 V
   Avalanche Rugged Technology
   Rugged Gate Oxide Technology
                                                                              RDS(on) = 0.3
   Lower Input Capacitance                                                    ID = -10.5 A
   Improved Gate Charge
   Extended Safe Operating Area
       o                                                                      D2-PAK                      I2-PAK
   175 C Operating Temperature
   Lower Leakage Current : 10
