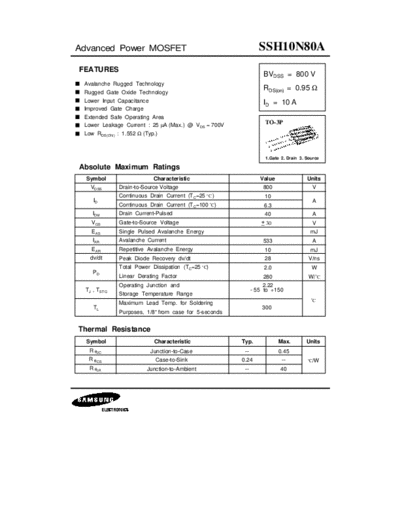

Image preview - the first page of the document



>> Download ssh10n80a documenatation <<

Text preview - extract from the document

Advanced Power MOSFET                                           SSH10N80A
FEATURES
                                                                 BVDSS = 800 V
 Avalanche Rugged Technology
 Rugged Gate Oxide Technology
                                                                 RDS(on) = 0.95
 Lower Input Capacitance                                         ID = 10 A
 Improved Gate Charge
 Extended Safe Operating Area
 Lower Leakage Current : 25
