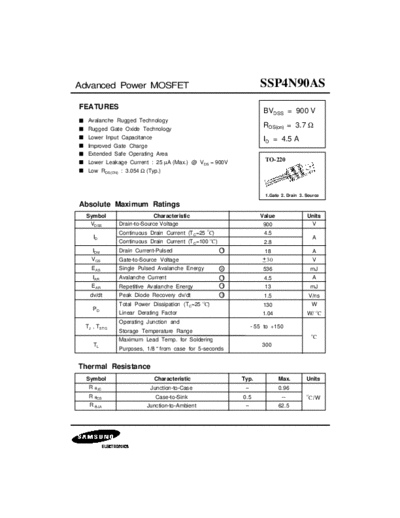

Image preview - the first page of the document



>> Download ssp4n90as documenatation <<

Text preview - extract from the document

Advanced Power MOSFET                                              SSP4N90AS
FEATURES
                                                                    BVDSS = 900 V
  Avalanche Rugged Technology
  Rugged Gate Oxide Technology
                                                                    RDS(on) = 3.7
  Lower Input Capacitance                                           ID = 4.5 A
  Improved Gate Charge
  Extended Safe Operating Area
  Lower Leakage Current : 25
