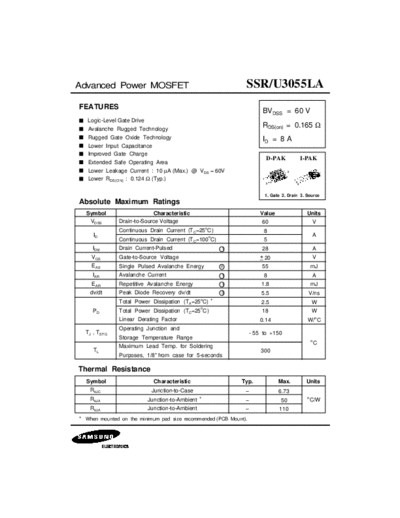

Image preview - the first page of the document



>> Download ssu3055la documenatation <<

Text preview - extract from the document

Advanced Power MOSFET                                              SSR/U3055LA
FEATURES
                                                                            BVDSS = 60 V
   Logic-Level Gate Drive
   Avalanche Rugged Technology
                                                                            RDS(on) = 0.165
   Rugged Gate Oxide Technology                                             ID = 8 A
   Lower Input Capacitance
   Improved Gate Charge
                                                                                D-PAK                       I-PAK
   Extended Safe Operating Area
   Lower Leakage Current : 10
