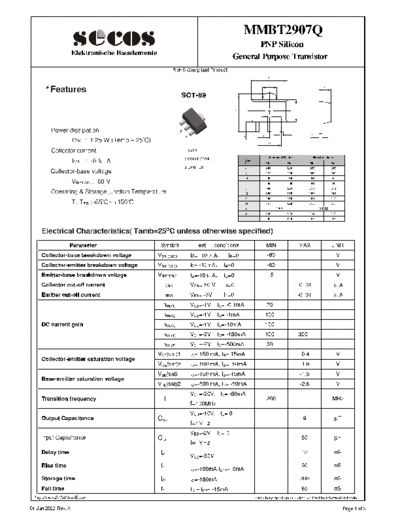

Image preview - the first page of the document
>> Download mmbt2907q documenatation <<
Text preview - extract from the document
MMBT2907Q
PNP Silicon
Elektronische Bauelemente
General Purpose Transistor
RoHS Compliant Product
D
D1
* Features A
SOT-89
E1
E
b1
1
Power dissipation 2 b
e C
3
L
O
PCM : 1.25 W (Temp.= 25 C) e1
Collector current 1.B AS E
Dimensions In Millimeters Dimensions In Inches
2.C OLLE C T OR
ICM : -0.6 A Symbol
3 Min Max Min Max
3.E MIT T E R A 1.400 1.600 0.055 0.063
Collector-base voltage b 0.320 0.520 0.013 0.020
b1 0.360 0.560 0.014 0.022
V(BR)CBO : -60 V c 0.350 0.440 0.014 0.017
D 4.400 4.600 0.173 0.181
Operating & Storage junction Temperature D1 1.400 1.800 0.055 0.071
O O E 2.300 2.600 0.091 0.102
Tj, Tstg : -55 C~ +150 C E1 3.940 4.250 0.155 0.167
e 1.500TYP 0.060TYP
e1 2.900 3.100 0.114 0.122
L 0.900 1.100 0.035 0.043
Electrical Characteristics( Tamb=25OC unless otherwise specified)
Parameter Symbol Test conditions MIN MAX UNIT
Collector-base breakdown voltage V(BR)CBO Ic= -10A IE=0 -60 V
Collector-emitter breakdown voltage V(BR)CEO Ic= -10mA IB=0 -60 V
Emitter-base breakdown voltage V(BR)EBO IE=-10A IC=0 -5 V
Collector cut-off current ICBO VCB=-50 V , IE=0 -0. 01 A
Emitter cut-off current IEBO VEB= -3V , IC=0 -0. 01 A
hFE(1) VCE=-1V, IC= -0.1mA 75
hFE(2) VCE=-1V, IC= -1mA 100
DC current gain hFE(3) VCE=-1V, IC=-10mA 100
hFE(4) VCE=-2V, IC= -150mA 100 300
hFE(5) VCE=-2V, IC=-500mA 50
VCE(sat)1 IC=-150 mA, IB=-15mA -0.4 V
Collector-emitter saturation voltage
VCE(sat)2 IC=-500 mA, IB=- 50mA -1.6 V
VBE(sat)1 IC=-150 mA, IB=-15mA -1.3 V
Base-emitter saturation voltage
VBE(sat)2 IC=-500 mA, IB= -50mA -2.6 V
VCE=-20V, IC= -50mA
Transition frequency fT 200 MHz
f=100MHz
VCB=-10V, IE= 0
Output Capacitance Cob 8 pF
f=1MHz
VEB=-2V, IC= 0
Input Capacitance Cib 30 pF
f=1MHz
Delay time td VCC=-30V,
12 nS
Rise time tr IC=-150mA,IB1=-15mA
30 nS
Storage time tS IC=-150mA 300 nS
Fall time tf IB1= IB2= -15mA 65 nS
http://www.SeCoSGmbH.com Any changing of specification will not be informed individual
01-Jun-2002 Rev. A Page 1 of 3
MMBT2907Q
PNP Silicon
Elektronische Bauelemente General Purpose Transistor
TYPICAL CHARACTERISTICS
