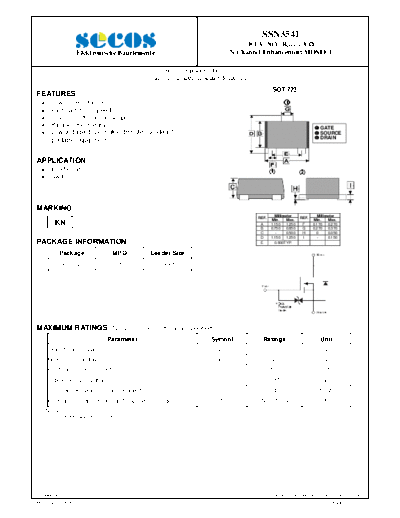

Image preview - the first page of the document



>> Download ssn3541 documenatation <<

Text preview - extract from the document

                                                                                                SSN3541
                                                                                        0.1 A, 30 V, RDS(ON) 8
                     Elektronische Bauelemente                                     N Channel Enhancement MOSFET

                                                     RoHS Compliant Product
                                             A suffix of "-C" specifies halogen & lead-free

                                                                                                        SOT-723
 FEATURES
        Low on-resistance
        Fast switching speed
        Drive circuits can be simple
        Parallel use is easy                                                                                                       1 GATE
        Low voltage drive makes this device ideal for                                                                              2 SOURCE
        portable equipment                                                                                                         3 DRAIN



 APPLICATION
        Interfacing
        Switching



 MARKING
                                                                                                         Millimeter                 Millimeter
                                                                                              REF.                        REF.
                                                                                                       Min.     Max.              Min.     Max.
          KN                                                                                   A       1.150    1.250      F      0.170   0.270
                                                                                               B       0.750    0.850      G      0.270   0.370
                                                                                               C         -      0.500      H        0     0.050
                                                                                               D       1.150    1.250      I        -     0.150
 PACKAGE INFORMATION                                                                           E         0.800TYP.

            Package               MPQ        Leader Size
            SOT-723                8K            7 inch




 MAXIMUM RATINGS (TA = 25
