>> Download 2n4028 documenatation <<Text preview - extract from the document

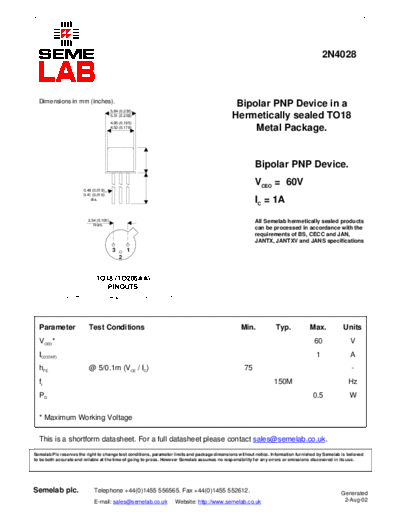

Dimensions in mm (inches).
Bipolar PNP Device in a
5.31 (0.209) Hermetically sealed TO18
4.52 (0.178) Metal Package.
Bipolar PNP Device.
VCEO = 60V
dia. IC = 1A
2.54 (0.100) All Semelab hermetically sealed products
can be processed in accordance with the
requirements of BS, CECC and JAN,
JANTX, JANTXV and JANS specifications
