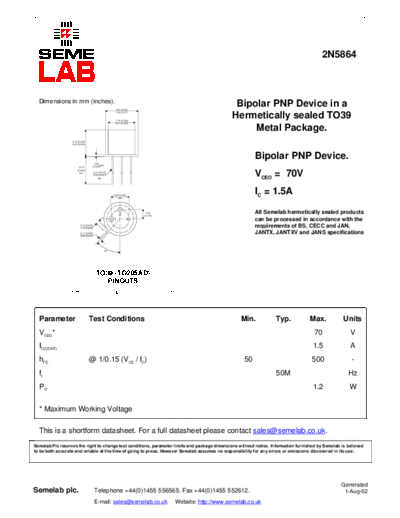

Image preview - the first page of the document



>> Download 2n5864 documenatation <<

Text preview - extract from the document

                                                                                                                                          2N5864



  Dimensions in mm (inches).
                                                          8.51 (0.34)
                                                                                                         Bipolar PNP Device in a
                                                                                                        Hermetically sealed TO39
                                                          9.40 (0.37)


                                                         7.75 (0.305)
                                                         8.51 (0.335)

                                                                                                             Metal Package.
                  6.10 (0.240)
                  6.60 (0.260)




                                                                                                                  Bipolar PNP Device.
                                     0.89
                                           max.
                       12.70        (0.035)
                      (0.500)
                        min.            0.41 (0.016)
                                        0.53 (0.021)
                                            dia.
                                                                                                                  VCEO = 70V
                                                        5.08 (0.200)
                                                            typ.
                                                                                                                  IC = 1.5A

                                                             2
                                                                          2.54
                                                                        (0.100)
                                                                                                                  All Semelab hermetically sealed products
                                                        1          3                                              can be processed in accordance with the
                         0.74 (0.029)
                         1.14 (0.045)
                                                                                                                  requirements of BS, CECC and JAN,
                         0.71 (0.028)                                                                             JANTX, JANTXV and JANS specifications
                         0.86 (0.034)




                                                  45
