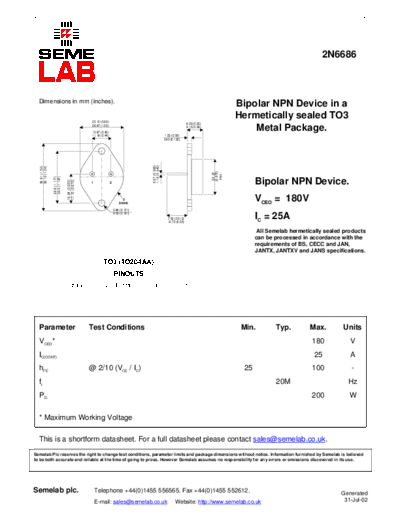

Image preview - the first page of the document



>> Download 2n6686 documenatation <<

Text preview - extract from the document

                                                                                                                                                                             2N6686



  Dimensions in mm (inches).
                                                                                                                                               Bipolar NPN Device in a
                                                    25.15 (0.99)
                                                                                                                                               Hermetically sealed TO3
                                                                                                                       6.35 (0.25)
                                                    26.67 (1.05)
                                                    10.67 (0.42)
                                                                                                                       9.15 (0.36)
                                                                                                                                                   Metal Package.
                                                    11.18 (0.44)                                       1.52 (0.06)
                                                                                                      3.43 (0.135)
                                                                                       0.97 (0.060)
                                                                                       1.10 (0.043)
   38.61 (1.52)
   39.12 (1.54)




                                                                                                                                     (0.875)
                                                                                                                                      22.23

                                                                                                                                      max.
                  29.9 (1.177)
                  30.4 (1.197)




                                                                                                                                                     Bipolar NPN Device.
                                   16.64 (0.655)
                                   17.15 (0.675)




                                                   1               2



                                                                              3
                                                                           (case)
                                                                                                                                                     VCEO = 180V
                                                                       3.84 (0.151)
                                                                       4.09 (0.161)
                                                                                                        7.92 (0.312)
                                                                                                        12.70 (0.50)
                                                                                                                                                     IC = 25A
                                                                                                                                                      All Semelab hermetically sealed products
                                                                                                                                                     can be processed in accordance with the
                                                                                                                                                     requirements of BS, CECC and JAN,
                                                                                                                                                     JANTX, JANTXV and JANS specifications.

                                                            TO3 (TO204AA)
                                                                       PINOUTS
