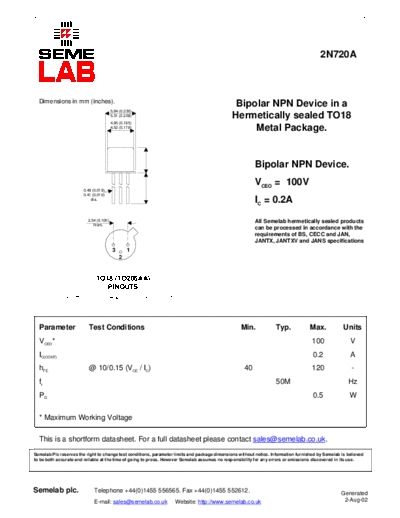

Image preview - the first page of the document

>> Download 2n720a documenatation <<

Text preview - extract from the document

  Dimensions in mm (inches).
                                                                                                Bipolar NPN Device in a
                                         5.84 (0.230)
                                         5.31 (0.209)                                          Hermetically sealed TO18
                                         4.95 (0.195)
                                         4.52 (0.178)                                               Metal Package.

                                                                                                          Bipolar NPN Device.
                                                                                                          VCEO = 100V
                       0.48 (0.019)
                       0.41 (0.016)
                           dia.                                                                           IC = 0.2A
                          2.54 (0.100)                                                                    All Semelab hermetically sealed products
                                                                                                          can be processed in accordance with the
                                                                                                          requirements of BS, CECC and JAN,
                                                                                                          JANTX, JANTXV and JANS specifications
                                         3        1

                              TO18 (TO206AA)
