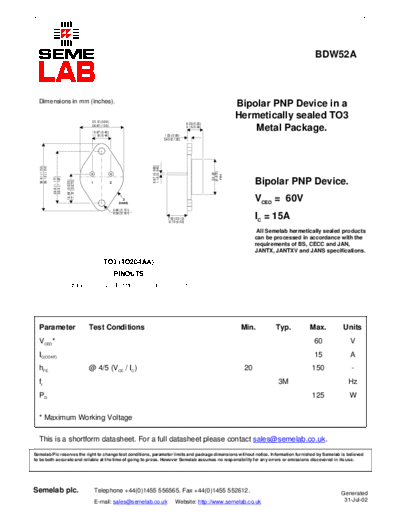

Image preview - the first page of the document
bdw52a


>> Download bdw52a documenatation <<

Text preview - extract from the document
                                                                                                                                                                           BDW52A



  Dimensions in mm (inches).
                                                                                                                                               Bipolar PNP Device in a
                                                    25.15 (0.99)
                                                                                                                                               Hermetically sealed TO3
                                                                                                                       6.35 (0.25)
                                                    26.67 (1.05)
                                                    10.67 (0.42)
                                                                                                                       9.15 (0.36)
                                                                                                                                                   Metal Package.
                                                    11.18 (0.44)                                       1.52 (0.06)
                                                                                                      3.43 (0.135)
                                                                                       0.97 (0.060)
                                                                                       1.10 (0.043)
   38.61 (1.52)
   39.12 (1.54)




                                                                                                                                     (0.875)
                                                                                                                                      22.23

                                                                                                                                      max.
                  29.9 (1.177)
                  30.4 (1.197)




                                                                                                                                                     Bipolar PNP Device.
                                   16.64 (0.655)
                                   17.15 (0.675)




                                                   1               2



                                                                              3
                                                                           (case)
                                                                                                                                                     VCEO = 60V
                                                                       3.84 (0.151)
                                                                       4.09 (0.161)
                                                                                                        7.92 (0.312)
                                                                                                        12.70 (0.50)
                                                                                                                                                     IC = 15A
                                                                                                                                                      All Semelab hermetically sealed products
                                                                                                                                                     can be processed in accordance with the
                                                                                                                                                     requirements of BS, CECC and JAN,
                                                                                                                                                     JANTX, JANTXV and JANS specifications.

                                                            TO3 (TO204AA)
                                                                       PINOUTS
