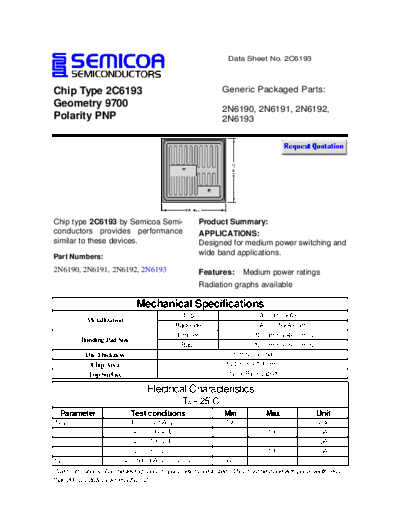

                                                                 Data Sheet No. 2C6193




Chip Type 2C6193                                               Generic Packaged Parts:
Geometry 9700                                                  2N6190, 2N6191, 2N6192,
Polarity PNP                                                   2N6193




Chip type 2C6193 by Semicoa Semi-                      Product Summary:
conductors provides performance                        APPLICATIONS:
similar to these devices.                              Designed for medium power switching and
                                                       wide band applications.
Part Numbers:
2N6190, 2N6191, 2N6192, 2N6193                         Features:       Medium power ratings
                                                       Radiation graphs available

                                Mechanical Specifications
                                                Top                         Al - 30.0 k
