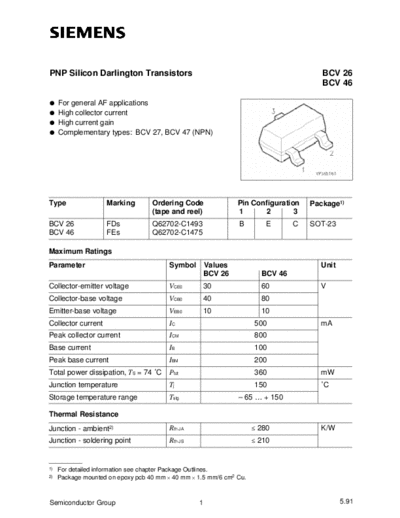

Image preview - the first page of the document
>> Download bcv26_bcv46 documenatation <<
Text preview - extract from the document
PNP Silicon Darlington Transistors BCV 26
BCV 46
q For general AF applications
q High collector current
q High current gain
q Complementary types: BCV 27, BCV 47 (NPN)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
BCV 26 FDs Q62702-C1493 B E C SOT-23
BCV 46 FEs Q62702-C1475
Maximum Ratings
Parameter Symbol Values Unit
BCV 26 BCV 46
Collector-emitter voltage VCE0 30 60 V
Collector-base voltage VCB0 40 80
Emitter-base voltage VEB0 10 10
Collector current IC 500 mA
Peak collector current ICM 800
Base current IB 100
Peak base current IBM 200
Total power dissipation, TS = 74 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
