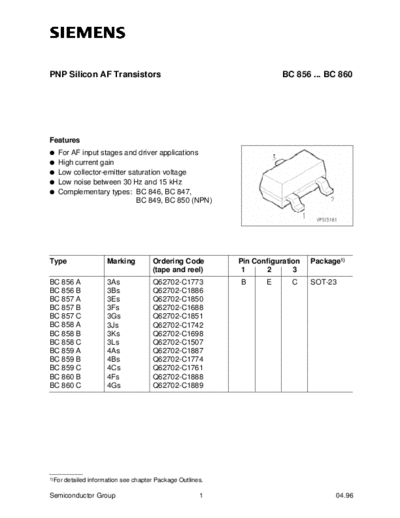

Image preview - the first page of the document
>> Download bc856_bc857_bc858_bc859_bc860 documenatation <<Text preview - extract from the documentPNP Silicon AF Transistors BC 856 ... BC 860
Features
q For AF input stages and driver applications
q High current gain
q Low collector-emitter saturation voltage
q Low noise between 30 Hz and 15 kHz
q Complementary types: BC 846, BC 847,
BC 849, BC 850 (NPN)
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3
BC 856 A 3As Q62702-C1773 B E C SOT-23
BC 856 B 3Bs Q62702-C1886
BC 857 A 3Es Q62702-C1850
BC 857 B 3Fs Q62702-C1688
BC 857 C 3Gs Q62702-C1851
BC 858 A 3Js Q62702-C1742
BC 858 B 3Ks Q62702-C1698
BC 858 C 3Ls Q62702-C1507
BC 859 A 4As Q62702-C1887
BC 859 B 4Bs Q62702-C1774
BC 859 C 4Cs Q62702-C1761
BC 860 B 4Fs Q62702-C1888
BC 860 C 4Gs Q62702-C1889
1)For detailed information see chapter Package Outlines.
Semiconductor Group 1 04.96
BC 856 ... BC 860
Maximum Ratings
Parameter Symbol Values Unit
BC 856 BC 857 BC 858
BC 860 BC 859
Collector-emitter voltage VCE0 65 45 30 V
Collector-base voltage VCB0 80 50 30
Collector-emitter voltage VCES 80 50 30
Emitter-base voltage VEB0 5 5 5
Collector current IC 100 mA
Peak collector current ICM 200
Peak base current IBM 200
Peak emitter current IEM 200
Total power dissipation, TS = 71
