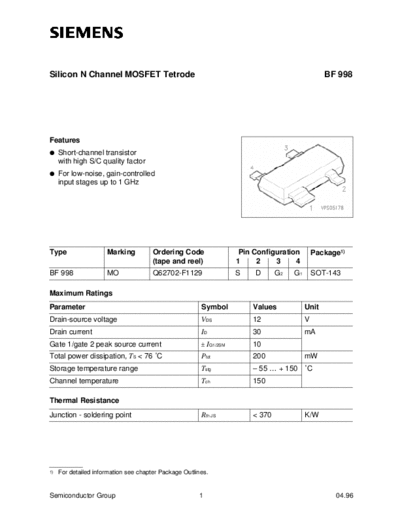

>> Download bf998 documenatation <<Text preview - extract from the documentSilicon N Channel MOSFET Tetrode BF 998
Features
q Short-channel transistor
with high S/C quality factor
q For low-noise, gain-controlled
input stages up to 1 GHz
Type Marking Ordering Code Pin Configuration Package1)
(tape and reel) 1 2 3 4
BF 998 MO Q62702-F1129 S D G2 G1 SOT-143
Maximum Ratings
Parameter Symbol Values Unit
Drain-source voltage VDS 12 V
Drain current ID 30 mA
Gate 1/gate 2 peak source current
